Grizzly Sheet Pile Driver

Description
Technical Specifications

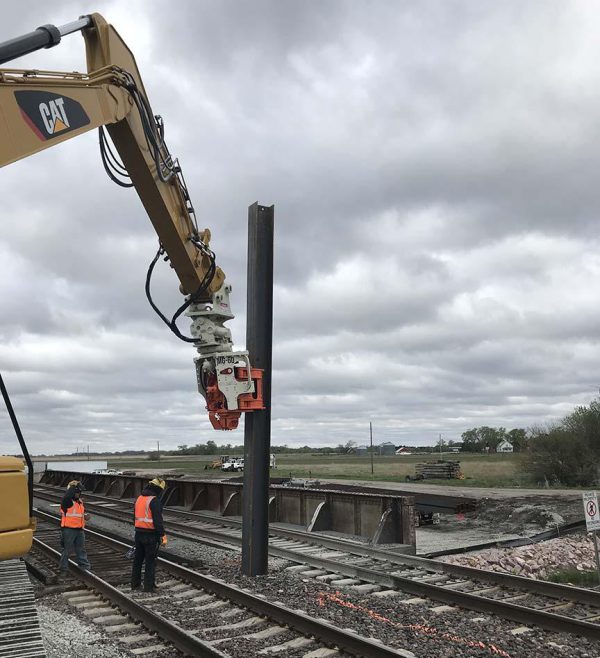

Combining power, versatility and speed, the GRIZZLY MultiGrip™ establishes new standards for side-grip vibratory pile drivers. With its innovative features, this hydraulic attachment tool increases your excavator’s profitability, reduces your operating expenses and gives you the opportunity to work in deep foundations. This excavator-mounted attachment is equipped with a side-grip clamping device designed to facilitate and speed up the handling, driving and extraction of piles and sheet piles.

All Grizzly MultiGrip Vibratory Pile Drivers offer versatile power and 360 degree rotation for extreme maneuverability and precise handling. This type of excavator attachment is ideal for a selection of different industries and applications, as it can help reduce downtime on the jobsite, while also increasing profitability. Grizzly MultiGrip Vibratory Pile Drivers also come fully equipped with quick change clamps for quickly converting round piles to sheets.

  • Efficiently drive sheet piles, H-beams, and pipe.
  • Multi-grip allows you to easily drive different styles of pile and in different ways (side grip and top grip)
  • Side grip especially useful for driving tall piles
  • Increased mobility and flexibility vs. conventional crane/hammer setups
  • 360° continuous heavy-duty rotation
  • 40° tilt system
  • SafeGRIP system ensures the jaws remain tightly closed in case of a broken line
  • 2 models to fit 20 – 45 ton carriers
MG-60:
Excavator Class: 22-30 tons
Oil Flow: 170 L/min (45 GPM)
Weight: 2450 kg (5400 lbs)
Max. Pressure Settings: 310 bar (4500 psi)
Frequency: 2800 RPM
Centrifugal Force: 588 kN (60 Tons)
Number of Elastomers: 10
Machine Height: 1829 mm (72 in)
Rotation/Tilt Angle: 360/40 degrees
Number of Eccentrics: 2
MG-90:
Excavator Class: 30-45 tons
Oil Flow: 227 L/min (60 GPM)
Weight: 3266 kg (7200 lbs)
Max. Pressure Settings: 310 bar (4500 psi)
Frequency: 2800 RPM
Centrifugal Force: 883 kN (90 Tons)
Number of Elastomers: 116
Machine Height: 2235 mm (88 in)
Rotation/Tilt Angle: 360/40 degrees
Number of Eccentrics: 4
