CHX25 Hi-Rail Excavator

Description
Technical Specifications
Attachments

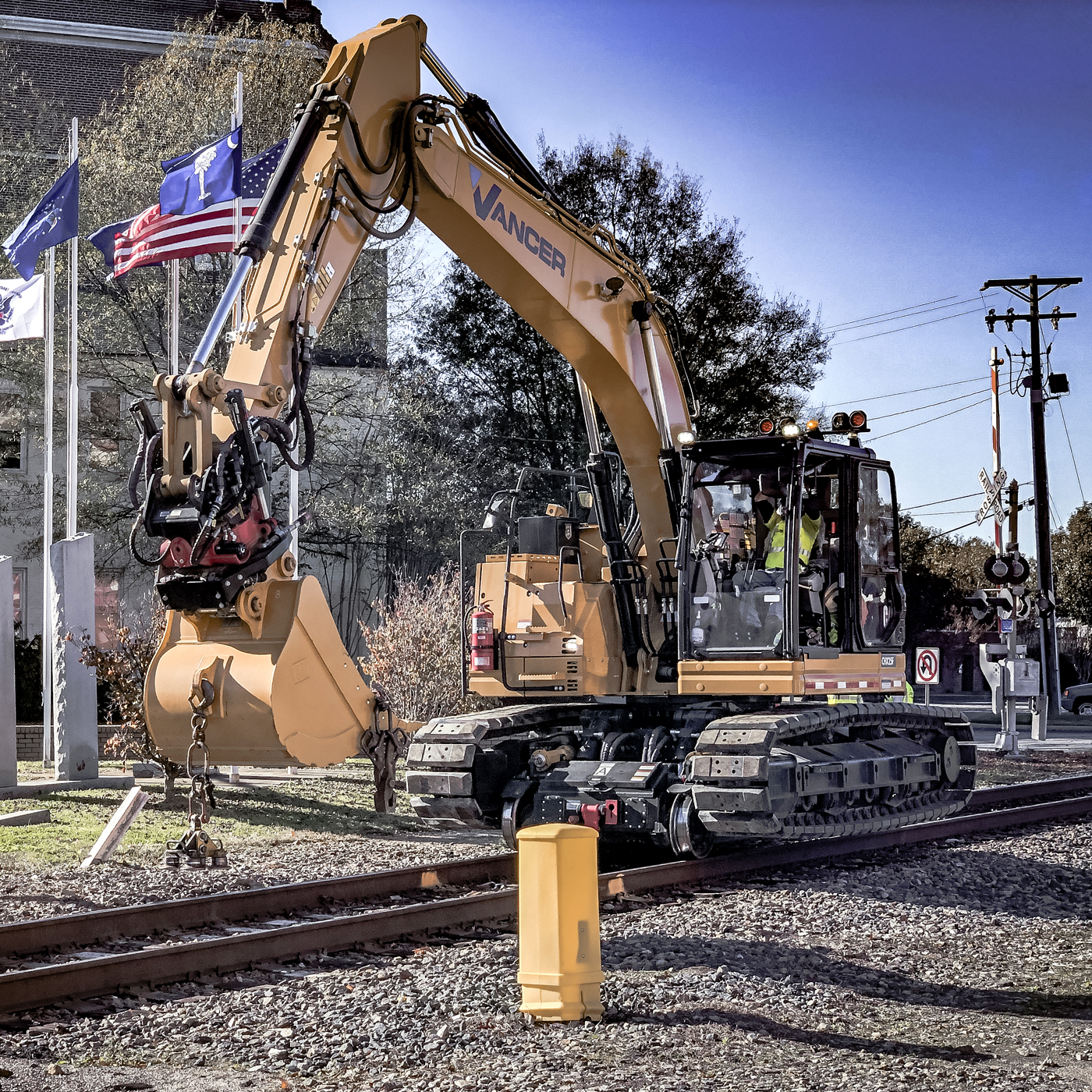

The combination of compact size and rail capability makes the Vancer CHX25 Hi-Rail Excavator an excellent fit for any rail maintenance job. The C4.4 ACERT motor provides ample power while conserving fuel and minimizing DEF usage. In-cab controls for auxiliary and hi-rail equipment are engineered for ease of use, guaranteeing high productivity. Pneumatic components were added for train air brakes. Hi-rail drive allows the CHX25F Hi-Rail Excavator to easily make its way to water-logged, crowded or remote work locations. Using this machine will bring decreased downtime and increased productivity for any project that requires heavy lifting.

  • Engine set-up is designed to offer both lower fuel and DEF consumption while meeting EPA standards
  • Selection of attachments provide excellent functionality for rail lines to conduct various maintenance projects
  • The hydraulically powered hi-rail function allows for easy adjustment when switching from off-track to hi-rail and track travel.
  • Increased hydraulic pressure and flow facilitate better lift for maximum productivity.
  • Easily operated in-cab controls for auxiliary and hi-rail equipment.
  • Pneumatic components for train air brakes.
Engine: Cat C4.4 ACERT
Net Power: 161 hp (120 kW)
Tier: Tier 4 Final
Operating Weight: 70,400 lbs (32,000 kg)
Shipping Height: 11.25 ft (3.43 m)
Shipping Length: 32.083 ft (9.78 m)
Shipping Width: 10.5 ft (3.2 m)
Speed: 25 mph
Ground Level Reach: 32.08 ft (9.78 m)
Fuel Tank: 86.6 gal (328 L)
Operator: 69 dB(A)
Max Drawbar Pull: 45,591 lbf
Tail Swing: 5.67 ft (1.73 m)
DEF Tank: 4.9 gal (19 L)
  • Cat Work Tool Attachments
  • Clam Bucket
  • Rail Threader

brush-cutter tie-tamper tie-inserter undercutter-bars

culvert-cleaner ballast-cribber
